Ashen Divide
Marble Rhythm
SKUs: TV40-TV41
Installation Instructions
How to Install Decorative Wall Panels on an Accent Wall
Before you start
Ensure the wall is clean, dry, and level. Remove any dust, grease, or loose paint. The surface should be flat, with no more than 1/6 in. variation over 4 ft. Fill uneven areas with plaster or cover the installation area with 1/4 in. MDF sheets.
- Mark the wall layout using a level and measuring tape to define the installation area. The wall sets should be installed directly above the baseboard (or floor, if there’s no baseboard), using it as a natural alignment and support for the bottom row.
Dry-lay pieces on the floor to confirm pattern/grain direction and smooth connection of the parts.
Tools required for wall panels installation
- Measuring tape
- Level
- Pencil
- Caulk gun and construction adhesive
- Painter’s tape
- 18-gauge nailer with 2–2.5 in. finishing nails
- Drill (for TV bracket mounting, if needed)
Recommended adhesive: Fuze It Max (Home Depot product #313740337). Estimated coverage is 20–25 sq. ft. per tube.
Dry installation option (no adhesive on the wall)
If you are renting or just want to keep the wall clean.
First, attach 1/4 in. MDF sheets to the wall with finishing nails. The small nail holes are easy to patch later. Then install the wall panels over the MDF using adhesive, following the standard installation diagram.
For a more advanced setup, align the MDF joints with the panel joints so the wall can be removed in sections and relocated.
Step-by-Step Installation Guide

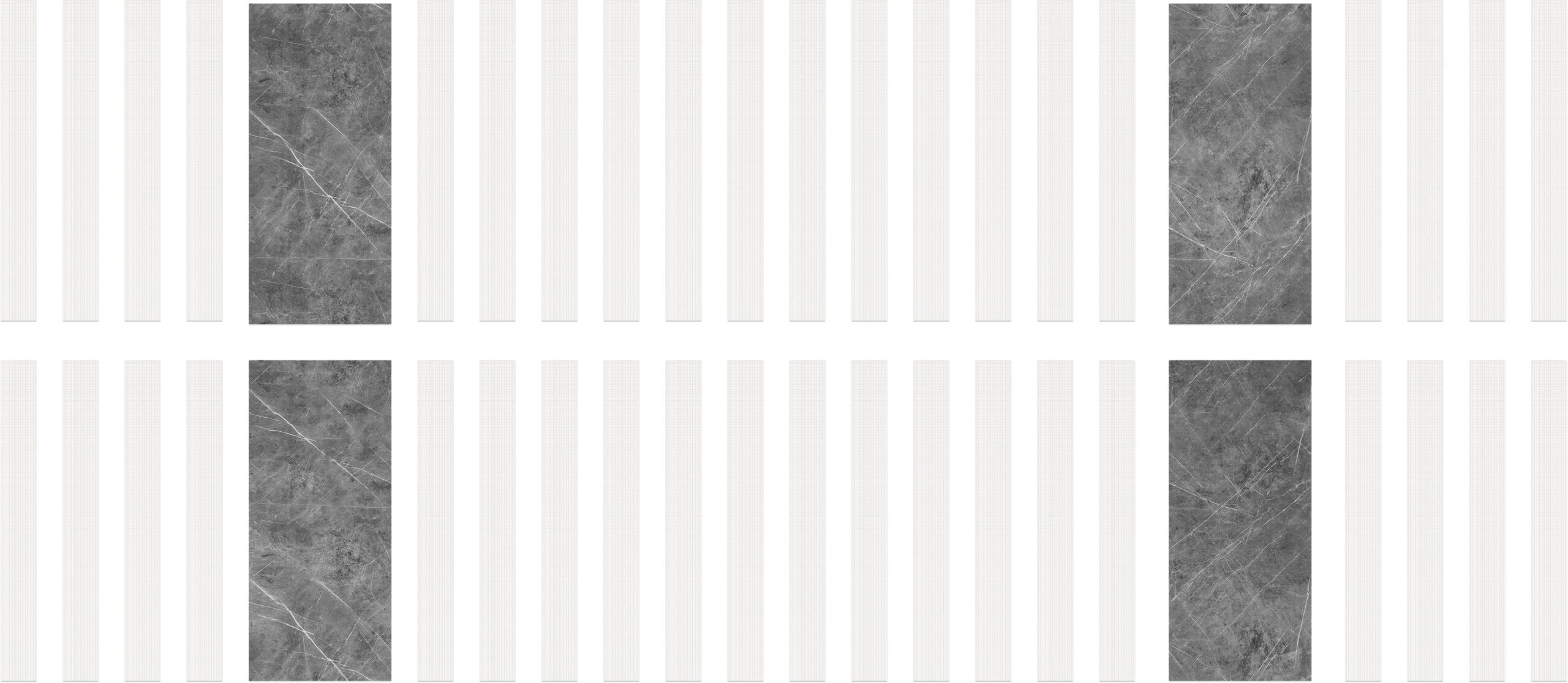

Step 1
Dry-lay pieces on the floor
Wall Slats Installation Video
Step 2
Install the two-layer felt acoustic panels adhesive side up with adhesive and finishing nails. See the installation video for details.
Installation Video for Felt Raised Panels

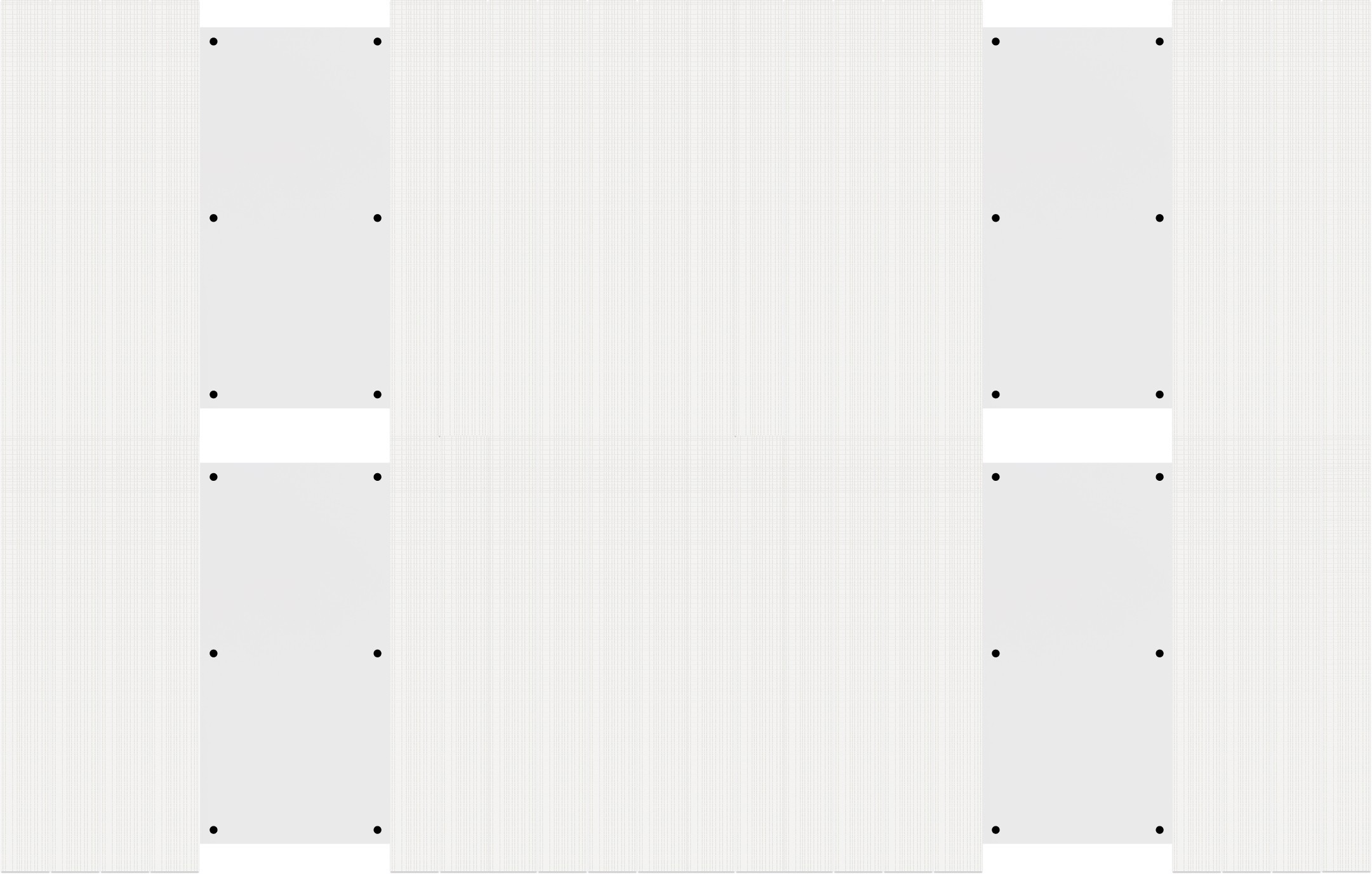

Step 3

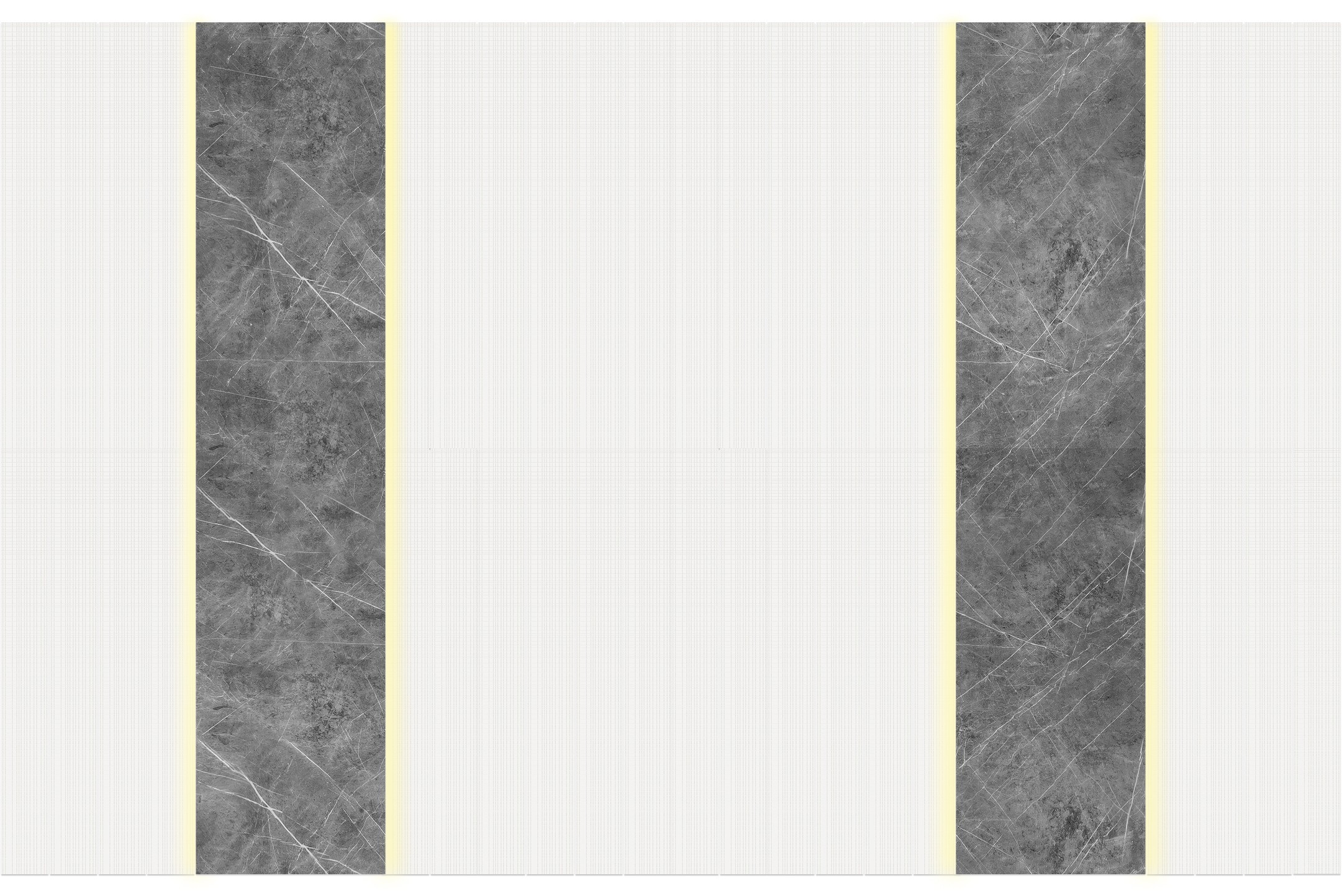

Create adhesive anchors through the felt to hold the panels. Install LED strips behind the panels.
Frequently Asked Questions About Wall Panels System Installation
How do you install wall panels step by step?
Wall panels are typically installed by preparing the wall, marking the layout, arranging the parts on the floor, applying adhesive, and securing the panels in place. Follow the installation instructions provided for your specific model.
Can wall panels be installed without professional help?
Yes, most wall panel systems are designed for DIY installation and can be installed with basic tools. Our support team is available to help with installation questions. If you prefer professional help, a local handyman can usually handle the installation for a few hundred dollars.
Is lighting included?
Yes, a complete functional lighting kit is included for models shown with integrated lighting. The kit includes the power supply, LED channels, and a dimmable switch. For designs featuring hidden lighting systems, a full set of acoustic raising panels is also included to create the required spacing and lighting effect.

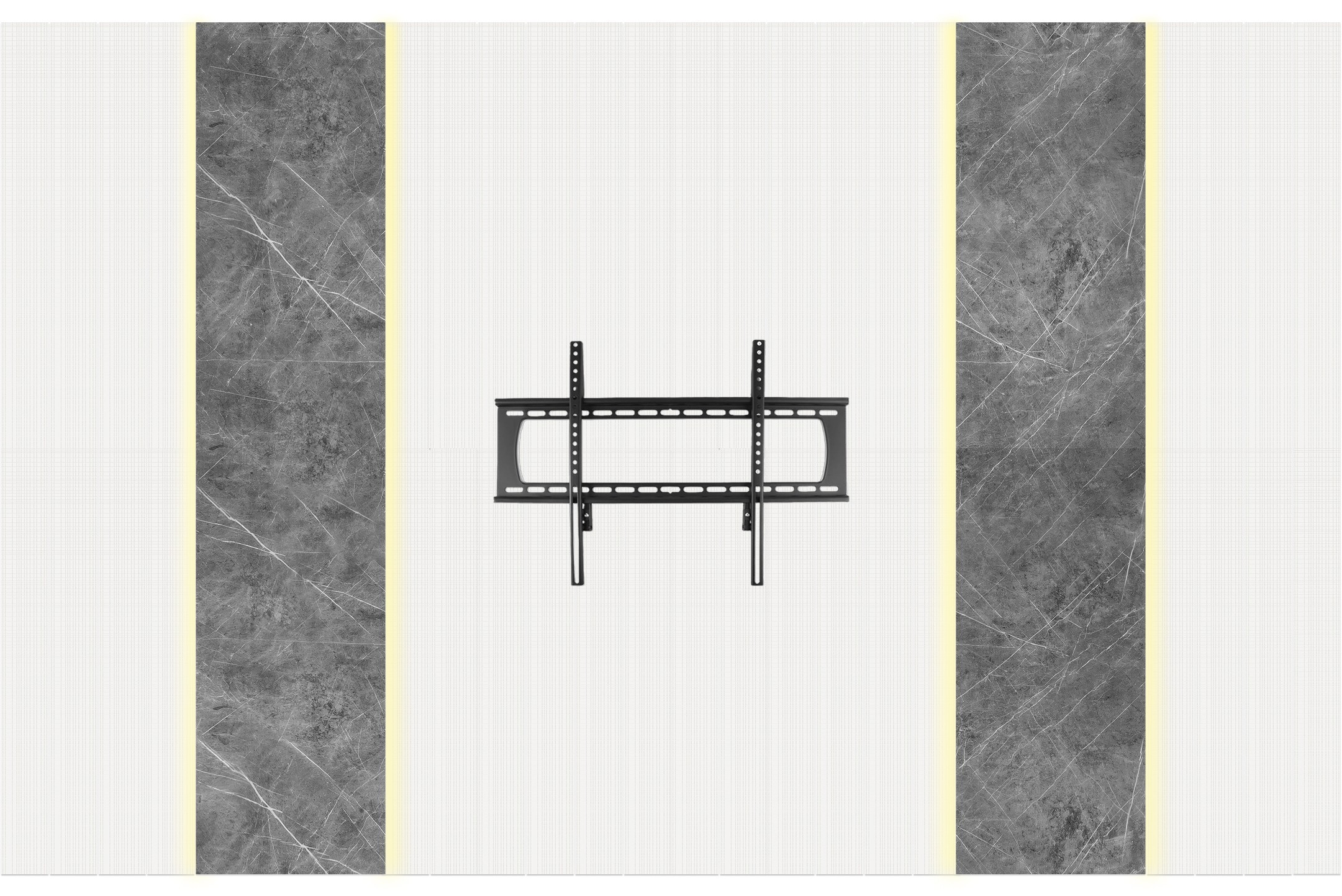

How to install wall panels around a TV?
In some cases, panels must be cut to fit around the TV bracket, outlet boxes, or cable openings. Follow the installation diagrams to keep cutting to a minimum and ensure proper alignment around the TV area.
Do wall panels require glue or nails?
Most installations use construction adhesive, with optional nails for extra support.
How long does it take to install an accent wall?
Most accent walls can be installed within a few hours depending on size and complexity.
Can wall panels be removed without damaging the wall?
Yes, panels can usually be removed with minimal wall damage. If adhesive is used, removal may peel some of the original paint, but the wall can usually be repaired with light patching and repainting. We also offer a dry installation method over MDF sheets, which is a good option for renters. In that case, removal typically leaves only small nail holes that are easy to patch. For a more advanced setup, the wall can even be made movable by aligning the MDF backing joints with the panel joints, allowing sections to be removed and relocated.
